Thread: lumber rack help

  1. #1

    lumber rack help

    I am going to try to put a lumber rack up this week end. I am looking for advice on vertical or horizontal. I have an area about 8 feet tall by 12 feet long. Please let me know you ideas and show me your wood rack planes and or pictures. Thank you for your help.

  2. #2

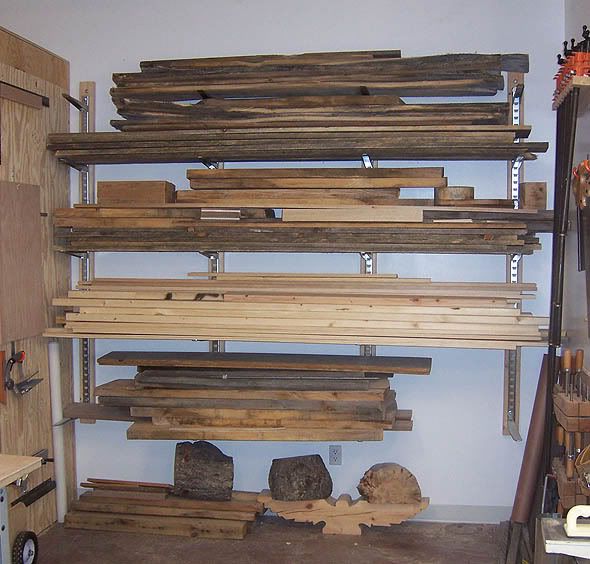

    This is what I did for my lumber:



    I have even more wood on it now and is really holding quite well. During construction I added 2x12's between the studs because I wasn't sure what type of rack I would buy/make but if you lag the brackets to the studs you should be ok. If you buy them just follow the insructions. This is where I bought my set:

    http://www.hartvilletool.com/product/10929

  3. #3
    Join Date
    Nov 2007
    Location
    Alabama USA
    Posts
    39
    I also had something similar to Rick's but a little less fancy I made it by putting 2x4's on the vertical and I cut pieces of ply to attach on either side with a 1x4 in between for the shelves. I worked good for a while until I had accumulated so much that every time I looked for a paticular piece of lumber I had to unstack it and it got to be a mess. So I thought I'd try something different. Last weekend I made a rolling cart that held all my lumber and still has room for plenty more. Just a little heavy to move around but when I get it in the right place I don't have to move it. Anyway here are some pics, I've since taken down the one mounted on the wall and just have the roll around.



    If you are interested in the roll around one I'll get the magazine and issue number for you, not sure which one it's in right off hand.

  4. #4
    I'm using the same heavy cantilevers as Rick Levine. I installed 4" X 6" studs for the increased load of a loft as well as the rack. Then used 3/8" X 5" lag screws and washers just above each 18" cantilever.

    Just a week after the install we had a 5.6 quake which had no effect on the fully loaded rack. That's some beefy steal.

    Vic

  5. #5
    Join Date
    Dec 2005
    Location
    I live in Prattville, Al, the preferred Community
    Posts
    35


    Here is what I did, 2 X 4's lag screwed to the studs, and 1/2" black iron pipe. Drilled hole to hold the pipe thru the 2 X 4's and into the studs.

  6. #6

    Another Rolling Rack

    Here's one I put together that stores sheet goods and lumber. It has casters so that it can roll around the shop. I have the complete plans in sketchup. Let me know if you need them, and I'll email them to you.

    Eric
    Attached Images Attached Images

  7. Hi Jack,

    here is a picture of mine. It is attached to the ceiling joists and secured to the cement floor. It features adjustable shelves and an area for storing sheet goods. Very pleased with it. Design came from a wood magazine article.
    Attached Images Attached Images
    cheers
    den

  8. #8
    Dennis,
    I have the same plane and I am leaning towards that design. I am back and forth between using the 2x4ís and 2x6ís. I want to stand it up between the 6x6ís in my pole barn. If you did it over would you change anything?

  9. Hi Jack,

    If this was a free-standing structure, I would probably go with 2 X 6. But the fact that I built it against an existing wall, I figured it would be plenty strong. I have had this rack for 2 years now and it is loaded with lumber at this moment. I have not noticed any arching in the 2 X 4 and the shelves are still level.
    I like the fact that each vertical piece of the structure is set every 2 feet. This gives me a quick 'estimate' of the length of the lumber pieces I have on the rack at a glance.
    cheers
    den

  10. #10
    Dennis thanks for the information. I am going to glue and shoot sheets of plywood to the back to help with movement. I see you went with 24 inch I was wondering if you went with the 24 inches or 16 on center. If there is no issue with the board support I like the idea about being able to get an idea about board length at a glance.

  11. #11

    Wood Rack

    Here is my lumber rack. It is freestanding, because I had to be able to move it when the military chose for me to move. I made it out of 2x4s, but would probably increase that to 2x6's on the uprights. I had to add a post at the outer corners to help support the weight, the shelves sagged. With 2x6 uprights I think it would have done better.

    I currently must have over 500 bdft of Oak, and 200 bdft of poplar on it, and it is holding up well.



    Todd Crow
    Northern MN

  12. #12
    Join Date
    Sep 2006
    Location
    Northern Illinois
    Posts
    739
    Quote Originally Posted by Jack Clay View Post
    Dennis,
    I have the same plane and I am leaning towards that design. I am back and forth between using the 2x4ís and 2x6ís. I want to stand it up between the 6x6ís in my pole barn. If you did it over would you change anything?


    I also built this rack. My only issue is the length of the shelves. As shown on the plan they are too short. If I were to rebuild this I would add at least 6 inches to the length of each.
    Wood'N'Scout

  13. #13
    Join Date
    Nov 2006
    Location
    New Holland, PA
    Posts
    107
    Quote Originally Posted by Eric Garner View Post
    I have the complete plans in sketchup. Let me know if you need them, and I'll email them to you.

    Eric
    Why not just share the model in the 3D Warehouse? File -> Export -> 3D Warehouse, IIRC.

  14. #14
    Join Date
    Jan 2007
    Location
    central PA
    Posts
    1,774
    I built the same one Dennis did from the magazine plans. I really like the sheet goods area as you can access any sheet easily. The only downside I have is my ceiling is only 7 ft. and I can only get two or three reasonable shelves. I made mine 12 ft. long. Only wish I could have gone higher.
    btw, you could park a truck on the shelving I think, It is very sturdy!

  15. #15
    Join Date
    Dec 2005
    Location
    Virginia Beach, VA
    Posts
    283
    Sorry to get off topic, but I'd like to get some info on your cyclone, Troy. I'm guessing that's a homemade creation? Did you use the Wood plans to build it.

    Inquiring minds want to know...

    Keith
